Description
xOur FireFlex 316L stainless steel smooth flue liners for chimneys are designed to reline existing chimneys or be used in new construction. These fireplace liner kits are manufactured using the highest grade mill certified alloys. They are manufactured with a continuous strip of stainless steel, interlocked and diagonally crimped to produce a gas and water tight system of superior strength. With 7 ply seams and 10 corrugations between each seam, these smooth flue liners for chimneys will deliver the flexibility needed to get the job done.
Fireside smooth flue liners for chimneys are .011 thick. Above industry standards.
Key Features:
- Smooth Wall Interior: Significantly reduces creosote buildup and improves natural draft, leading to safer operation and enhanced heating efficiency.
- Flexible 316Ti Stainless Steel: Provides exceptional durability and corrosion resistance, easily conforming to chimney bends for straightforward installation.
- UL 1777 Listed and Tested: Ensures the liner meets stringent safety and performance standards for reliable, certified protection.
- Lifetime Warranty: Offers complete assurance in the product's quality and longevity, providing lasting peace of mind.
- Multi-Fuel Compatibility: Safely vents exhaust from wood, pellet, corn, oil, and gas burning appliances, making it highly versatile.

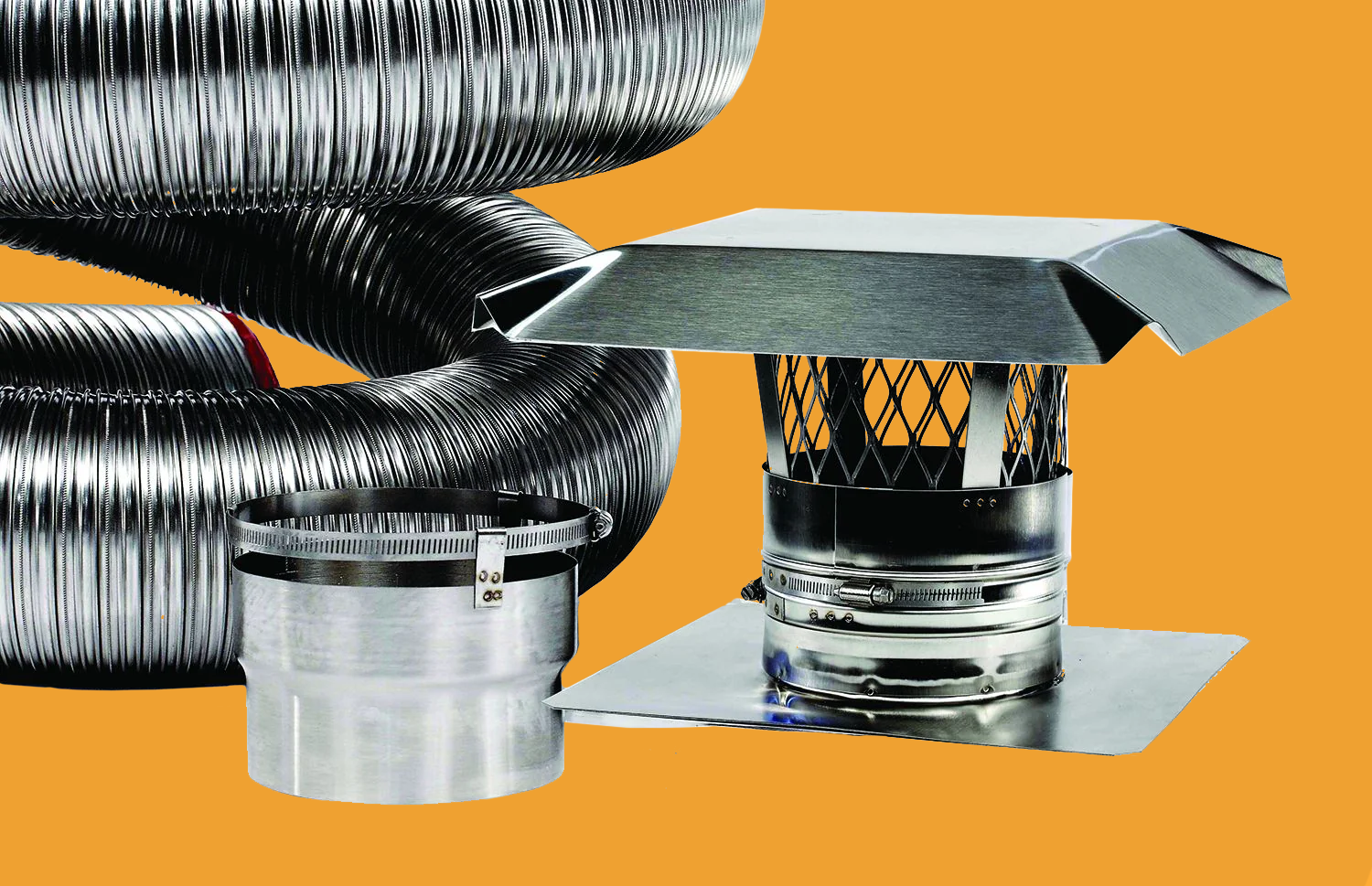

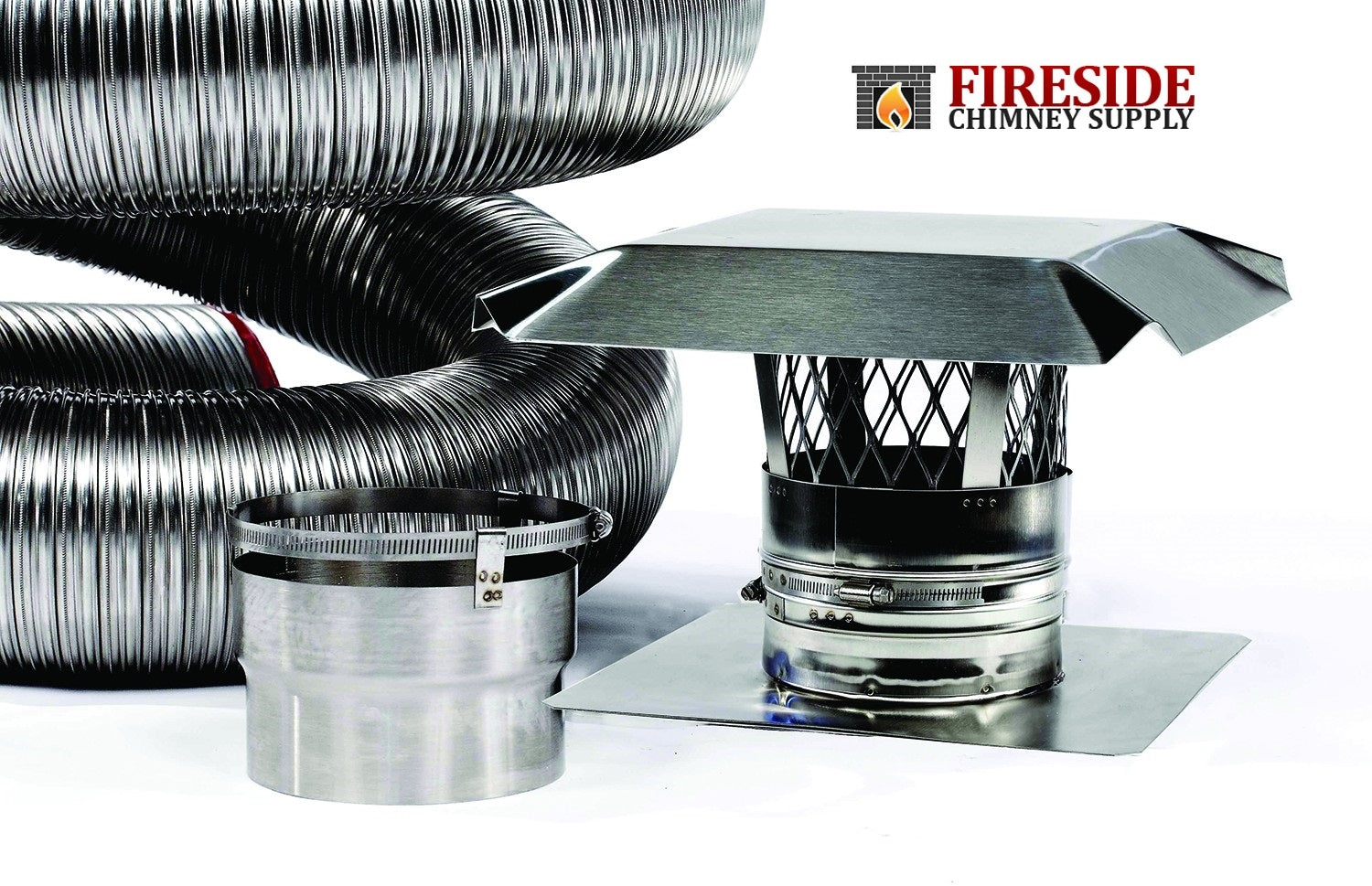

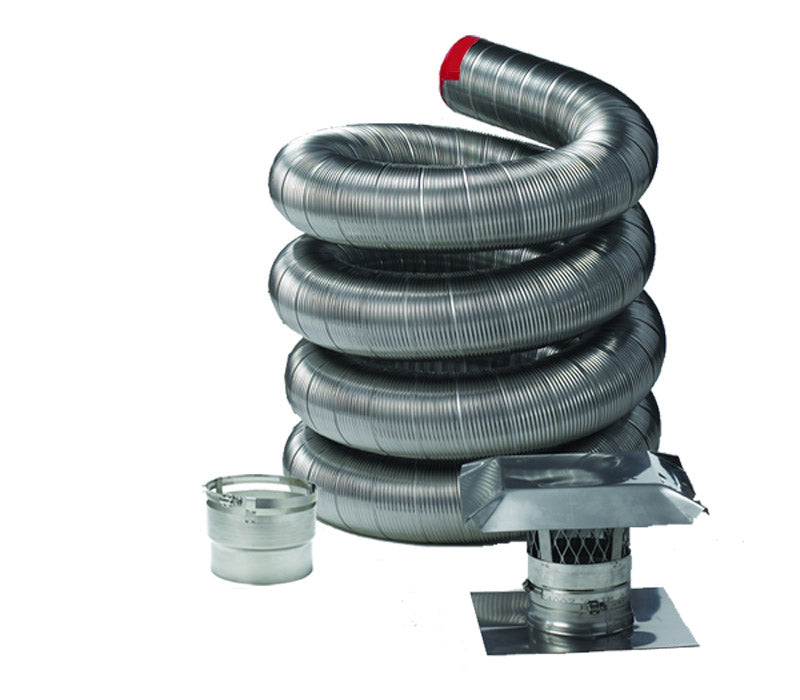

- Complete Basic Kit: Includes the flexible liner, top plate, rain cap, and appliance connector, simplifying your relining project with essential components.
·
Additional Information
xSpecifications:
- Top plate or Flue fit top plate (optional) for the chimneys with the clay tile liner, both with EZ connect collars
- Rain Cap with screen to eliminate the pests
- Appliance connector with EZ connect for the insert or vertical hook-up
- Lifetime transferable chimney liner warranty except when using coal or corn for fuel
- Complete installation instructions
- UL1777 Listed in the USA Underwriter Laboratories
All Fireplace Liner Kit Measurements are I.D. (Interior Dimension). For O.D. (Outside Dimension) Measurement Add ¼”. Example: A 6” Liner Would Have An I.D. Measurement of 6” and An O.D. Measurement Of 6 ¼”.
PLEASE NOTE: When installing Smooth Wall Liner, Install With Arrow Pointing UP.
Please use the following formula to get the approximate weight. .16 X Diameter X Length = Weight
We strongly recommend using a polypropylene chimney brush versus any metal chimney brush. Polypropylene is non-abrasive and does not scrape the interior of the chimney liner. Metal brushes have an adverse effect on the liner.
Download The Installation Document Click Here
