Description
xFireside Chimney Supply's FireFlex smooth wall chimney liners are made of 316L stainless steel and are used for Wood, pellet, Gas, and oil stoves and appliances.

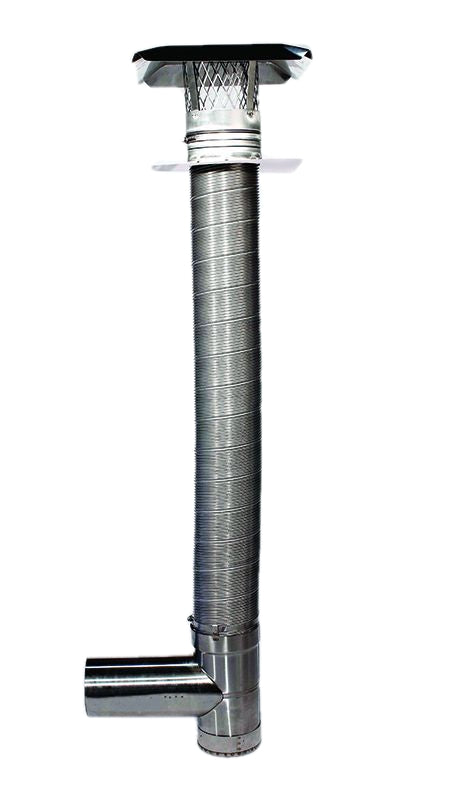

Our FireFlex 316L stainless steel flue liner system is designed to reline existing chimneys or be used in new construction. Manufactured using the highest grade mill certified alloys. Manufactured with a continuous strip of stainless steel, interlocked and diagonally crimped to produce a gas and water tight system of superior strength. With 7 ply seams and 10 corrugations between each seam it will deliver the flexibility needed to get the job done.
Key Features:

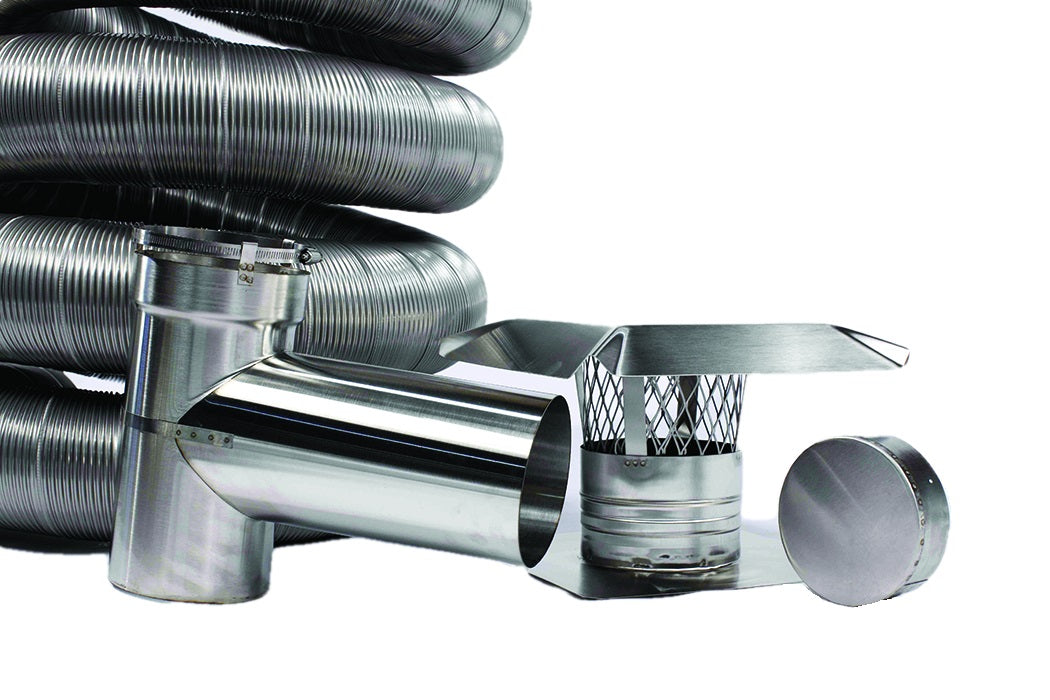

- Top plate or Flue fit top plate (optional) for the chimneys with the clay tile liner, both with EZ connect collars
- Rain Cap with screen to eliminate the pest

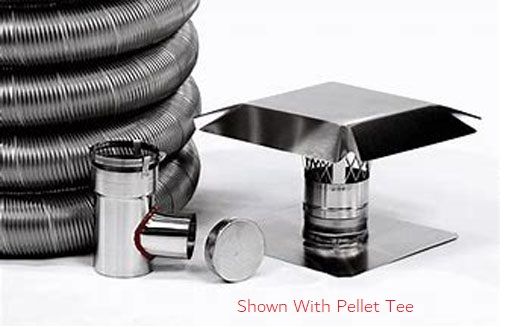

- 2 part stainless steel tee with removable snout for the horizontal hook-up
- Lifetime transferable chimney liner warranty except when using coal or corn for fuel
- Complete installation instructions
- UL1777 Listed in the USA Underwriter Laboratories
Additional Information
xAll Stainless Steel Flue Liner Measurements are I.D. (Interior Dimension). For O.D. (Outside Dimension) Measurement Add ¼”. Example: A 6” Liner Would Have An I.D. Measurement of 6” and An O.D. Measurement Of 6 ¼”.
PLEASE NOTE : When installing Smooth Wall Liner, Install With Arrow Pointing UP.
Please use the following formula to get the approximate weight. .16 X Diameter X Length = Weight
We strongly recommend using a polypropylene chimney brush versus any metal chimney brush. Polypropylene is non-abrasive and does not scrape the interior of the chimney liner. Metal brushes have an adverse effect on the liner.
Download The Installation Document Click Here
