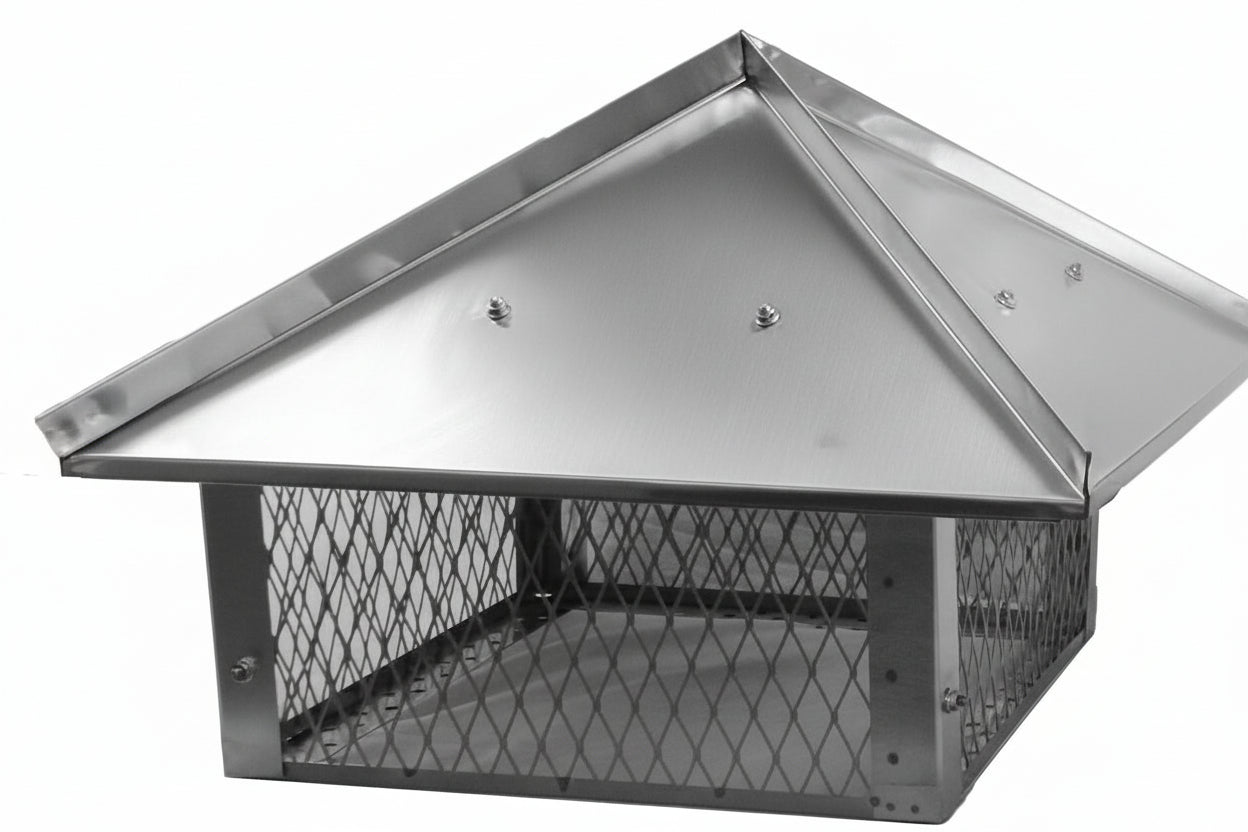

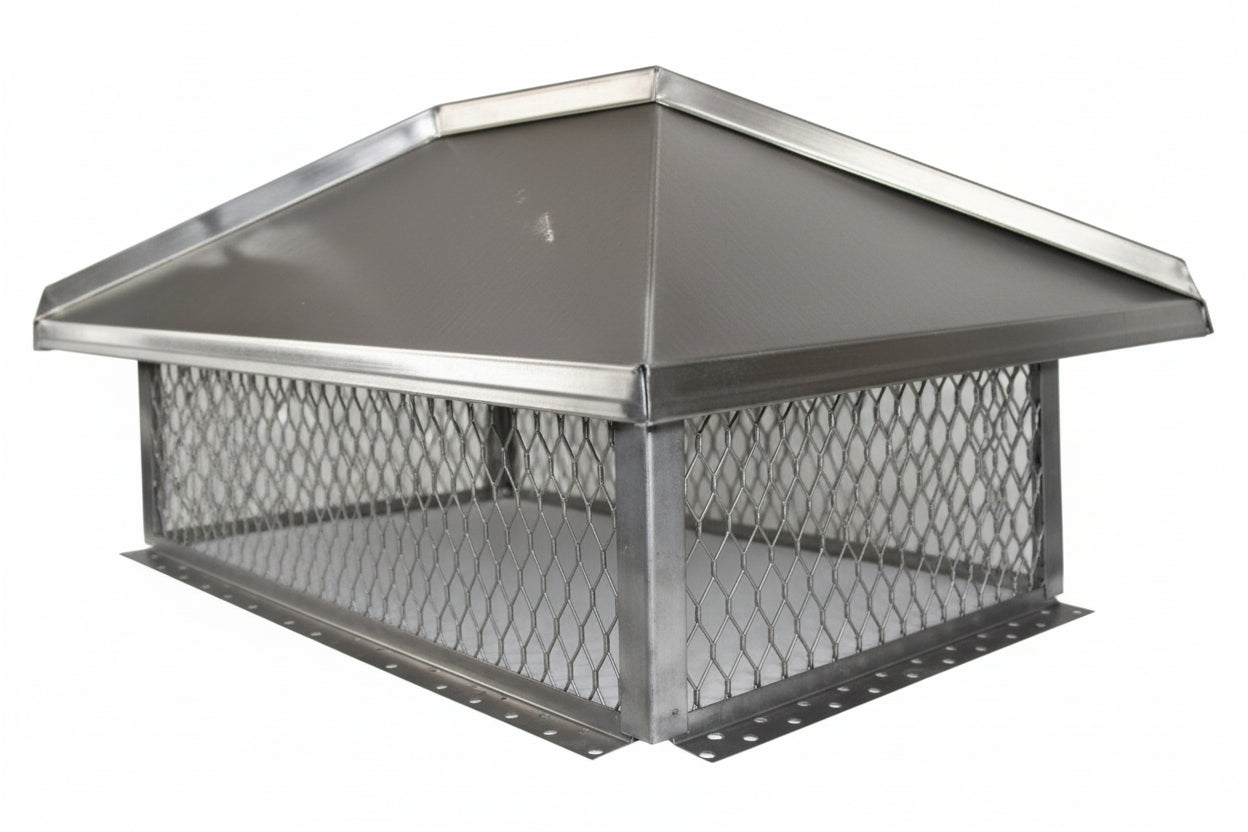

Top Mount Hip and Ridge Multi Flue Hinged Chimney Cap

Protect multiple flues at once while adding a striking architectural finish to your home.

Why settle for a basic, flat chimney cap when you can upgrade your home's exterior? Our Top Mount Hip and Ridge Multi-Flue Chimney Cap offers premium, full-coverage protection against rain, snow, and nesting animals while mimicking the classic slope of a traditional roofline.

Beyond its high-end appearance, this cap features a heavy-duty hinged base. This allows chimney sweeps and homeowners to simply unlatch and tilt the cap open for effortless cleaning and inspections—no need to unscrew or remove the entire unit!

Custom-manufactured in the USA from heavy-gauge stainless steel, this cap easily attaches directly to your chimney crown or brick using the included adhesive and masonry Tapcons.

Key Features & Benefits

• Architectural Elegance: The "Hip and Ridge" lid design sheds water rapidly while elevating the curb appeal of your chimney.

• Easy-Access Hinged Base: The top-mount frame hinges open, giving you immediate, hassle-free access to your flues for sweeping or maintenance.

• Complete Customization: Tailor your cap to your exact chimney. Choose your screen height (8" to 16"), roof pitch, overhang, and even add extra standing seams for a grander look.

• Optional Powder Coating: Match your home's roof or trim! Available in Jet Black, Dusty Grey, Sepia Brown, Winona White, Copper Brown, or special order RAL colors.

• All-in-One Installation Kit: Every cap includes the necessary adhesive and Tapcon screws for a secure, wind-resistant top-mount installation.

How to Measure for a Top-Mount Hinged Cap

Because this cap utilizes a hinged mounting flange that sits flat on your chimney crown, you must account for the hardware when measuring.

1. Measure the total outside length and width of your brick/masonry chimney top.

2. Subtract 3 inches from both the length and the width. (This provides the necessary clearance for the hinge base to sit flat on the crown without hanging over the edge).

3. Draft Clearance: Ensure you select a screen height that provides a minimum of 6 inches of clearance between the top of your tallest flue tile and the lid of the cap for proper smoke drafting. (Note: Steeper hip & ridge pitches will slightly decrease the functional screen height near the edges).

As the Hip and Ridge Pitch (w/Std. Overhang) increases, it will decrease the height of the screen.

Example: A 3/12 Pitch on a Hip and Ridge Multi Flue will decrease the screen height by .908”.

Using a Std. Overhang of 3.75”           Using an Overhang of 5.00”

Manufacturing & Shipping Details

• Made to Order: Your custom chimney cap is fabricated precisely to your specs and ships within 7–10 business days.

• Shipping Pro Tip: Shipping to a residential address requires a liftgate truck, incurring a freight surcharge. To save on shipping costs, select "Commercial Address" delivery if you have a business location we can ship to!

• Contractor Discounts: Ordering for a community project or large job site? We offer discounts on orders of 5 or more multi-flue covers. Contact us for details.
